產品規格
Cutting Speed:25m/Min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, PLT, Other
應用：激光切割
成色：全新
Cutting Thickness:0.5-15mm
CNC或不：是的
冷卻模式：水冷
控制軟件：Cypcut
產地：中國安徽（大陸）

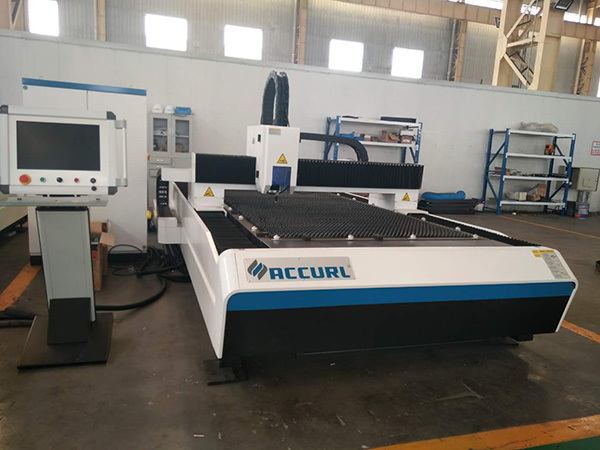

Model Number:KR3015G
認證：CE，ISO，SGS
Laser power::1000W/1500W/2200W/3300W/4000W
Fiber laser brand::IPG/Raycus
Laser head brand::PRECITEC
Laser head function::Auto tracking system
Cutting materials::S.S/ carbon steel/iron/aluminum
Color::customer order
Warranty::3 years
Product Keywords:laser metal cutting machine price
提供售後服務：工程師可在海外維修機械
Products advantage:
1. Excellent beam quality: the focus is smaller, the cutting line is finer, the work efficiency is higher, the processing quality is better.
2. High cutting speed: twice as high as the equivalent CO2 laser cutter;
3. High stability: using the world's top imported fiber laser, the performance is stable, and the key parts can last 100,000 hours.
4. High electric light conversion efficiency: fiber laser cutting machine is 3 times more efficient than CO2 laser cutting machine and energy saving and environmental protection;
5. Extremely low cost of use: the whole machine consumes only 20-30% of the same CO2 laser cutting machine.
6. Operation and maintenance of products: optical fiber transmission, no need to adjust the optical path;
7. Super flexible guiding light effect: compact size, compact structure and easy to be flexible processing requirements.
Machine Configuration:
| 沒有。 | 項目 | Brand | 可選的 |
| 1 | 大號畢子融 | ||
| 1.1 | 4000W Optical fiber laser | Raycus from China | IPG from Germany |
| 1.2 | Laser power supply | Raycus from China | IPG Germany |
| 1.3 | Precision cold water unit | TEYU from China | |
| 2 | 外部光路和切割頭 | ||
| 2.1 | Special laser cutting head | WSX or Raytool | American Lasermech |
| 3 | Main machine tool | ||
| 3.1 | Bed | Self made 8500kgs | |
| 3.2 | X,Y Rack and pinion | Atlanta from Germany | |
| 3.3 | Guide rails | HWIN fromTaiwan | |
| 3.4 | Servo motor and driver | YASKAWA from Japan | |
| 3.5 | 減速器 | MOTOVARIO from France | |
| 4 | Numerical control and software system |
| |
| 4.1 | CNC system (including control software) | Cypcut from China | |
常問問題
Q1.What’s your advantage? Why we choose you?
A:1) 10 Years experience of laser machine production.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized OEM.
3)We use famous brand of the laser tube, fiber laser source, laser head and import the rails and racks, and the best production process.
Q2.What’s the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3. How to delivery?
A: If machine is small size, we package it in plywood case into container by LCL. If your order machine is large size, we will package the machine with PVC and EPE to protect and make the frame with the machine into container directly. Also can chose shipping by air to your airport or courier door to door service.
Q4. What is about the after-sales service?
A:24 hours technical support online, any problem you can get solution within one day. We provide engineer oversea tech support. In the machine guarantee, if there is any spare parts broken, we change new one freely.
